CETUS CT-1

Ultraonic technology Combining with IoT

Specification

  • Temperature class T30, T50
  • Nominal flow 1.6 / 2.5 / 4.0 m³/h
  • Wide measurement range Q3/Q1 = 250, with optional range up to R=400
  • No straight pipe sections are required before or after the meter (U0/D0)
  • Environment class E2/M1
  • Protection class IP68
  • Nominal pressure PN16
  • Battery lifetime of up to 10 years
  • Flow direction indication
  • Durable composite body
  • Measurement units: m³-m³/h
  • Dual display of instant flow rate and accumulator
  • Integrated strainer and backflow valve

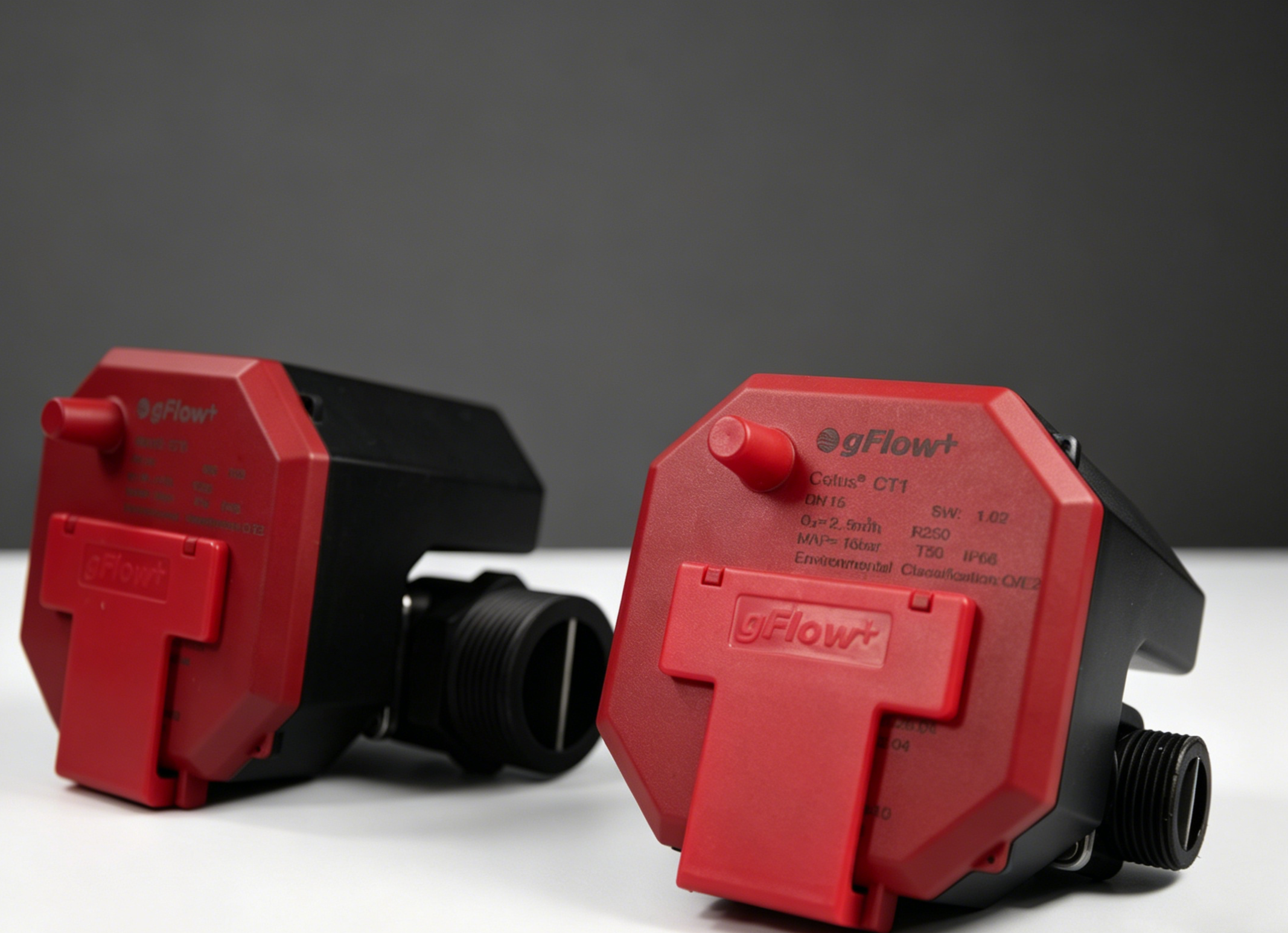

IoT Combined Ultrasonic Water Meter

Cetus Series CT1

The ultrasonic principle based measuring technology is undoubtedly one of the most reliable technologies within static metering. No moving parts ensure pinpoint accuracy without any maintenance efforts and costs. A Gflow+ solution anywhere in the world will consist of ultrasonic meter and digital remote data transmission system, thereby making it an effective and efficient smart metering solution. Cetus CT1 is OIML R49 certified for international utility and MID certified for European market.

Check detials for more details on how the ultrasonic principle works and how it overcomes the shortcomings of traditional metering.

Features

  • Dynamic range up to R400
  • Long life time operation up to 10 years
  • Solidstate meter with no moving components in pipe
  • Small footprint for easy installation in limited space
  • IoT integrated with LoraWan, NBIoT or LTE 4G
Data sheet Rev.A
